About Fields



Fields display in the Quick Edit panel that shows the Xyicon details, and can be customized to fit your information and data needs. SpaceRunner comes pre-populated with commonly used fields, but you may choose to edit or delete these fields or to add your own. Fields are assigned on a Class by Class basis, so that different Classes can have both common and unique fields. The available field types are listed below.


Text (Single Line)

The most common datatype. This is a free-form text field that displays one line of text.

Text (Multiple Line)

This is a free-form text field that allows multiple lines of text in a larger textbox than the Single Line text field, such as those used in Notes fields.


Field Text.PNG

Date

Displays a Calendar picker to choose the date.

Date Picker Display in Quick Edit

Date Picker Display in Quick Edit


Boolean

A true/false datatype. Requires a caption value to be added to represent True and False when the caption for that field is used on a Space. An example field name could be "Mounted to Wall" with a True value of "Wall Mount" and a False value of "Not on Wall", which will show in a Xyicon's caption when that field is selected. If one of these values is left blank, then the caption for this field will be empty when the caption layer is displayed.

Boolean Field Caption Setup

Boolean Field Caption Setup

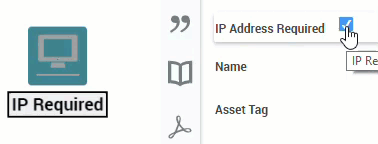

Field Boolean.gif

List (Single Selection)

A dropdown datatype. In addition to a Field Name, you will need to enter a list of values for users to select from. This field type allows for users to assign one value selected from the list.

List (Single Selection) setup. Only one value can be selected on the Xyicon at a time.

List (Single Selection) setup. Only one value can be selected on the Xyicon at a time.

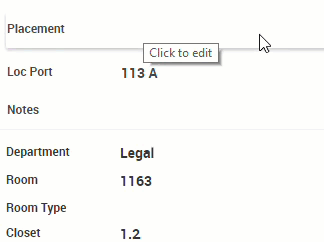

Field List Single Dropdown.gif

List (Multiple Selection)

A dropdown datatype. In addition to a Field Name, you will need to enter a list of values for users to select from. This field type allows for users to assign multiple values from the list at a time.

List (Multiple Selection) Setup

List (Multiple Selection) Setup

List (Multiple Selection) Quick Edit Display. Multiple values can be selected at once.

List (Multiple Selection) Quick Edit Display. Multiple values can be selected at once.
